New DSP Ⅲ+
Introduction
DSP Ⅲ+ is the most complete programming device for digital odometers, airbag modules, car radios, car immobilizers. It is a high-quality embeded system, which offers a maximum of flexibility and working comfort.  10 years warranty (just for machine)


Technical reference
Powered by industrial grade core board with Freescale i.MX28x processor, speeds up to 650MHZ, 800*480 TFT LCD and touch screen(7.0".16:9). Convenient keyset. USB host and USB device. SD card interface. 128MB NandFlash, 128MB DDRII.
We use industrial grade components to ensure the stability and reliability under a wide temperature range, from -40℃ to +85℃.
Whole machine passed EMC industry 4 grade quality assurance and durable performance, the product stability greatly improved.
The Wince6.0 operating system can ensure the software platform reliability and compatibility.
Self-check function integrated in system.
Enhanced OBD functions, including CAN-BUS / J1850 / CCD-BUS / ISO9141 / SPI protocols.
Intuitive operability by full menu and picture guidance. All data can be edited, stored and loaded.
Color connection picture is on the screen whenever you need.
The stored data can be transferred to a PC by USB port or SD card, and also can be transfer to wherever you want directly by internet.
Update directly from internet.


Main unit price(Warranty part without software): 1000 USD

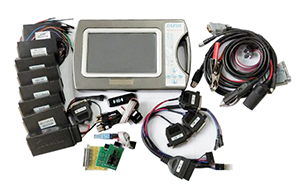

Odometer OBD package
Odometer OBD package: Machine, OBD cables, OBD、EEPROM adapters, CODE BOX, SD card , clip1, touch-holders, USB cable, Power cables.
Software :OBD functions and eeprom adapter are all active .

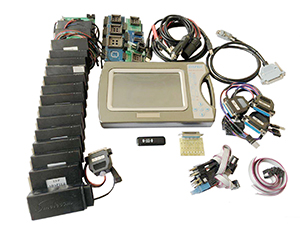

Odometer full package(include all software and hardware)
Odometer full package: Machine, OBD cables, EEPROM , MOTOROLA , NEC, TMS, HC711, HC908, HCS12 in-circuit , HC705, EWS, NDM457, ST624, TMS374, CMM, JC adapter, BENZ-38 connector,BWM-20 connector,BMW CAS cables and BENZ cluster cable, SD card , clip1, touch-holders, USB cable, Power cables , with full soft.
Software :OBD functions are all active .

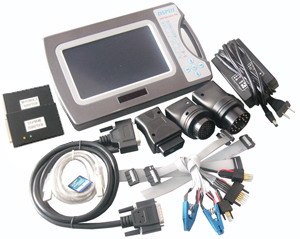

Immo full package(include all software and hardware)
Immo full package: main hardware, Transponder adapter, OBD cables, USB cable, Power cables, with full soft.
Software :OBD functions for Immo are all active .
Ford / Mazda: Key learning by OBD2 (not need code) for CAN-BUS cars.
4th Generation of VW Immo:
1.Make dealer keys by Megamos48 chip (using transponder adapter).
2.Key learning by OBD2 (not need code , not need online).
3.Cover all VW / SKADA / SEAT cars that use NEC or Micronas or 9s12xhz512(1M80F) MCU in dashboard.
4th Generation of AUDI Immo:
1.A6 / Q7
2.A3 / TT / R8 07-UP
Important Announcement
If you have previously purchased our old DSP3  we are offering for an exchange to the new one, cost is 695USD(include shipping cost).

All software on your old  will be transferred free of charge to your new DSP3+,  and you can also purchase additional software and  adapters for the new one.


How to exchange your old DSP3 for the new DSP3+
